Layered & Layered-Horizontal Graph layout

@Archie wrote:

Hi,
I am using GoJs (V1.4.6) graphs to create layered and layered-horizontal layouts. I have ensured that my layout settings are identical to what has been shown here : https://gojs.net/latest/samples/ldLayout.html.
Below is my code for "Layered" layout.

   layout = make(go.LayeredDigraphLayout, {
                        direction: 0,
                        aggressiveOption: go.LayeredDigraphLayout.AggressiveLess,
                        cycleRemoveOption: go.LayeredDigraphLayout.CycleDepthFirst,
                        initializeOption: go.LayeredDigraphLayout.InitDepthFirstIn,
                        iterations: 4,
                        layeringOption: go.LayeredDigraphLayout.LayerLongestPathSource,
                        packOption: go.LayeredDigraphLayout.PackStraighten,
                        columnSpacing: 10,
                        layerSpacing: 35,
                        setsPortSpots: true
                    });

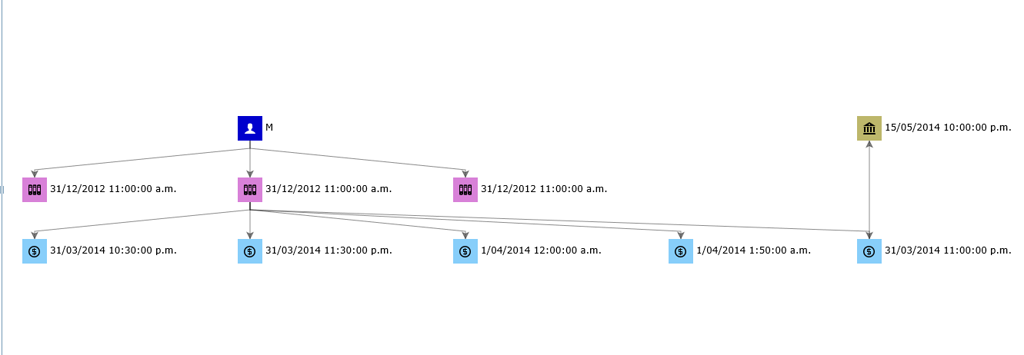

and I end up with the graph layout

I was expecting the node (with house like icon) to appear on the right-hand side of the transaction-like node( $ icon). What am I missing?. The first 3 levels appear OK but not there after.

Note : I have similar problem with "layered-horizontal" layout as well.

Layered_Horizontal.png1331x462 7.12 KB

.

Any help is highly appreciated.

Cheers,
Archie
