@ahmetgundogdu wrote:
I use this nodeTemplate,
this.diagram.nodeTemplateMap.add("",
goMake(go.Node, “Spot”,
{
name: “MainNode”,
locationObjectName: “Shape”,
locationSpot: go.Spot.Center,
selectable: true,
isPanelMain: true,
selectionAdornmentTemplate: nodeSelectionAdornmentTemplate,
selectionObjectName: “Shape”,
resizeObjectName: “Shape”,
rotateObjectName: “Shape”,
resizeAdornmentTemplate: nodeResizeAdornmentTemplate,
resizable: this.props.config.nodeConfig.resizable,
rotatable: true,
rotateAdornmentTemplate: nodeRotateAdornmentTemplate,
isShadowed: true,
shadowVisible: false,
shadowBlur: 10,
shadowOffset: new go.Point(0, 0),
background: “transparent”,
opacity: 1,
zOrder: 1,click: (e: go.InputEvent, obj: go.GraphObject) => { if (obj && obj.part && obj.part.data && obj.part.data.nodeConfig && obj.part.data.nodeConfig.isLock) { this.diagram.select(obj.part); } }, mouseEnter: (e: go.InputEvent, obj: go.GraphObject) => { this.toggleHighlightLinksAndNodes(obj.part.data.key, true); }, mouseLeave: (e: go.InputEvent, obj: go.GraphObject) => { this.toggleHighlightLinksAndNodes(obj.part.data.key, false); }, doubleClick: () => { this.openPropertyInspector(); }, }, new go.Binding("shadowColor", "", this.bindShapeTextBackgroundColor), new go.Binding("location", "", this.bindShapeLocation).makeTwoWay(this.converterShapeLocation), new go.Binding("isActionable", "", this.bindShapeLock), goMake(go.Panel, "Auto", goMake(go.Panel, "Vertical", goMake(go.Panel, "Position", { name: "Shape", fromSpot: go.Spot.AllSides, toSpot: go.Spot.AllSides, portId: "", toLinkable: true, fromLinkableSelfNode: false, fromLinkableDuplicates: true, toLinkableSelfNode: false, toLinkableDuplicates: true, shadowVisible: false, //shadowVisible: true, }, new go.Binding("fromLinkable", "", this.bindNodeFromLinkable.bind(this)), new go.Binding("toLinkable", "", this.bindNodeToLinkable.bind(this)), new go.Binding("cursor", "", this.bindNodeCursor.bind(this)), goMake(go.Panel, "Viewbox", goMake(go.Panel, "Position", { alignment: new go.Spot(-1, -1), }, this.getLockedFigure(lockedSVGPath), this.getLockedFigure(lockedSVGPath2), new go.Binding("visible", "", this.bindShapeLock), ), ), //goMake(go.Shape, "Rectangle", // { // geometryString: lockedSVGPath, // fill: "black", // stroke: "black", // alignment: new go.Spot(-1, -1) // }, // new go.Binding("visible", "", this.bindShapeLock), // new go.Binding("desiredSize", "", (sourceData: IFlowItemBase) => { // let scale = 10 / 50; // return new go.Size(sourceData.nodeConfig.size.width * scale, sourceData.nodeConfig.size.height * scale); // }), //), goMake(go.Shape, "Rectangle", //link drawn provider { stretch: go.GraphObject.Fill, fill: "transparent", strokeWidth: 0, shadowVisible: false, }), goMake(go.Panel, "Viewbox", { _isGuideObject: true, padding: new go.Margin(5), }, new go.Binding("desiredSize", "", this.bindShapeSize), goMake(go.Panel, "Position", { itemTemplate: goMake(go.Panel, goMake(go.Shape, "RoundedRectangle", { fill: "transparent", isGeometryPositioned: true, strokeWidth: 2, shadowVisible: false, //shadowVisible: true, //geometryStretch: go.GraphObject.Fill, }, new go.Binding("stroke", "", this.bindPanelItemBorderColor.bind(this)), new go.Binding("fill", "", this.bindPanelItemColor.bind(this)), new go.Binding("geometry", "", this.bindShapeGeometry.bind(this)), new go.Binding("strokeWidth", "", (sourceData: IUnifiedShape) => { return sourceData.stroke ? 1 : 0 }) ) ) }, new go.Binding("itemArray", "", this.bindPanelItemArray.bind(this)), ), ), new go.Binding("desiredSize", "", this.bindShapeSize).makeTwoWay(this.converterShapeSize), new go.Binding("angle", "", this.bindShapeAngle).makeTwoWay(this.converterShapeAngle), ), goMake(go.Panel, "Horizontal", { //margin: new go.Margin(5, 0, 5, 0), }, goMake(go.TextBlock, { name: "textBlock", editable: true, // editing the text automatically updates the model data cursor: "pointer", // visual hint that the user can do something with this node label shadowVisible: true, stroke: "transparent", }, new go.Binding("text", "", this.bindShapeText).makeTwoWay(this.converterShapeText), new go.Binding("stroke", "", this.bindShapeTextColor), new go.Binding("visible", "", (sourceData: IFlowItemBase) => { return !(sourceData.typeCode == 33 || sourceData.typeCode == 13); }), new go.Binding("font", "", this.bindShapeTextFont), new go.Binding("isUnderline", "", this.bindShapeTextUnderline), new go.Binding("background", "", this.bindShapeTextBackgroundColor), new go.Binding("textAlign", "", this.bindShapeTextAlignment), ) ) ), goMake(go.Shape, // provide interior area where the user can grab the node { //_isGuideObject: true, fill: "transparent", stroke: "smokewihte", opacity: 0, cursor: "move", //position: new go.Point(0, 0), click: function (e: any, obj: go.Shape) { obj.part.rotateAdornmentTemplate.visible = true; if (obj.diagram.lastInput.shift) { obj.cursor = "pointer"; } } }, new go.Binding("desiredSize", "", (sourceData: IFlowItemBase) => { return new go.Size(sourceData.nodeConfig.size.width - (sourceData.nodeConfig.size.width / 2), sourceData.nodeConfig.size.height - (sourceData.nodeConfig.size.height / 2)) }).makeTwoWay(), ), ), ) );And i draw link

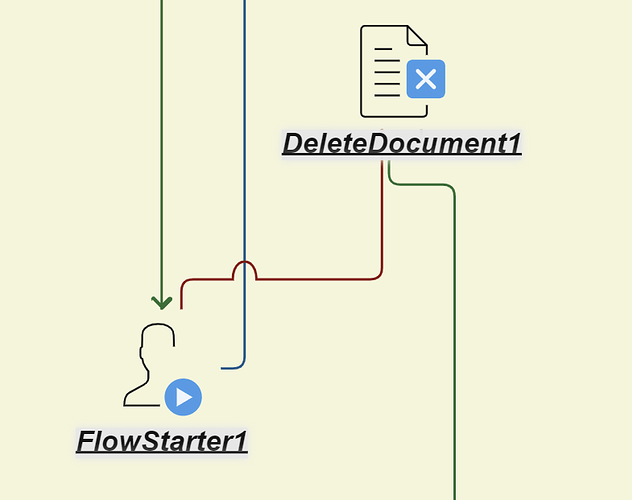

You see red link, fromNode:FlowStarter toNode:DeleteDocument .
If the link is linked from the corner of the text, I want to leave a space between the link and the shape.
